Teensy 4.1 Triple CAN Board with ETH and u-blox NEO-M8M GNSS

Teensy 4.1 Triple CAN Board with ETH and u-blox NEO-M8M GNSS

£134.76 inc VAT
£112.30 - £112.30
£112.30
£112.30 - £112.30
£112.30
ex VAT
SKU T41-3XCANETH-M8M

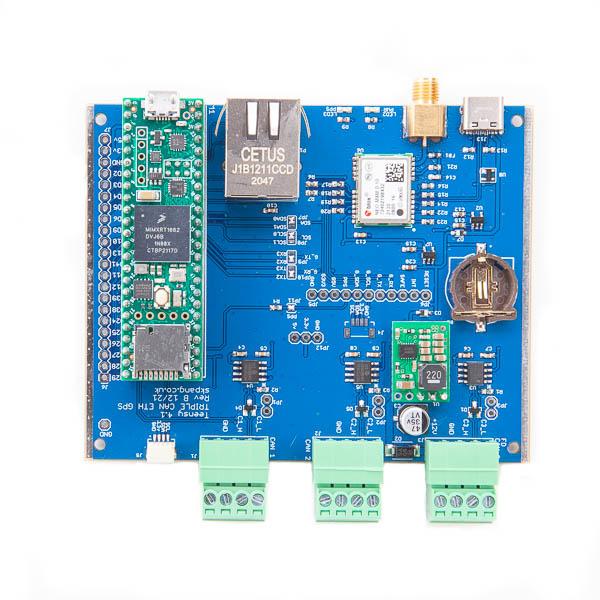

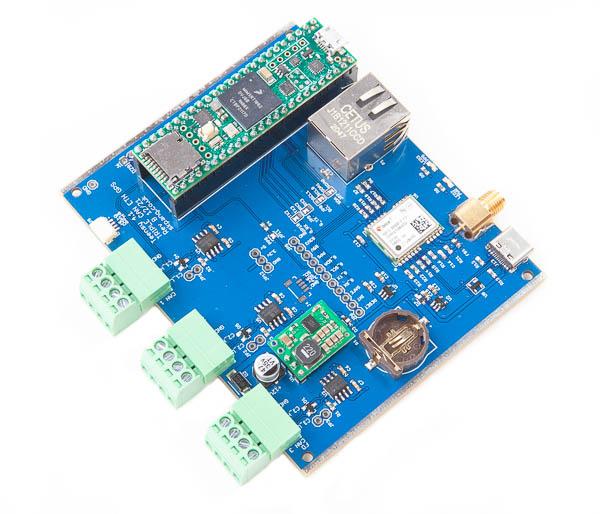

This is a Teensy 4.1 board with two Classic CAN and one CAN FD port, ethernet mag jack and u-blox NEO-M8M GNSS module. One board SMPS module can accept external 7 to 12v input with reverse polarity protection.

Features

  • Teensy 4.1 fitted
  • Two Classic CAN and one CAN FD port
  • Ethernet magjack
  • On board SMPS for external 7 to 12v supply with reverse polarity protection
  • Qwiic connector fitted for external sensors
  • GNSS module
    • u-blox NEO-M8M
    • UART can be connected Serial2 or Serial3
    • I2C can be connected to I2C0 or I2C1
    • 1PPS connected to D35
    • USB C connector on board
    • Coin cell battery holder for back up. Requires CR1225 cell
    • SMA connector for external antenna
    • Red power LED
    • Blue 1PPS LED

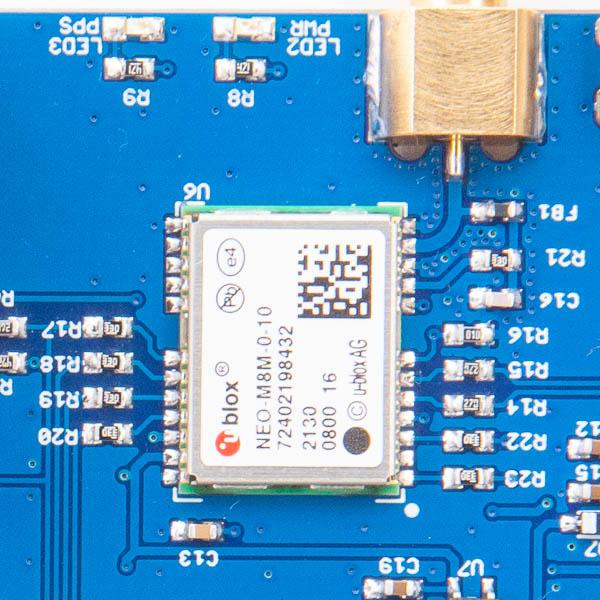

The GNSS module is an u-blox NEO-M8M module. Other GNSS module can be fitted on request such as the NEO-M8T timing GNSS.

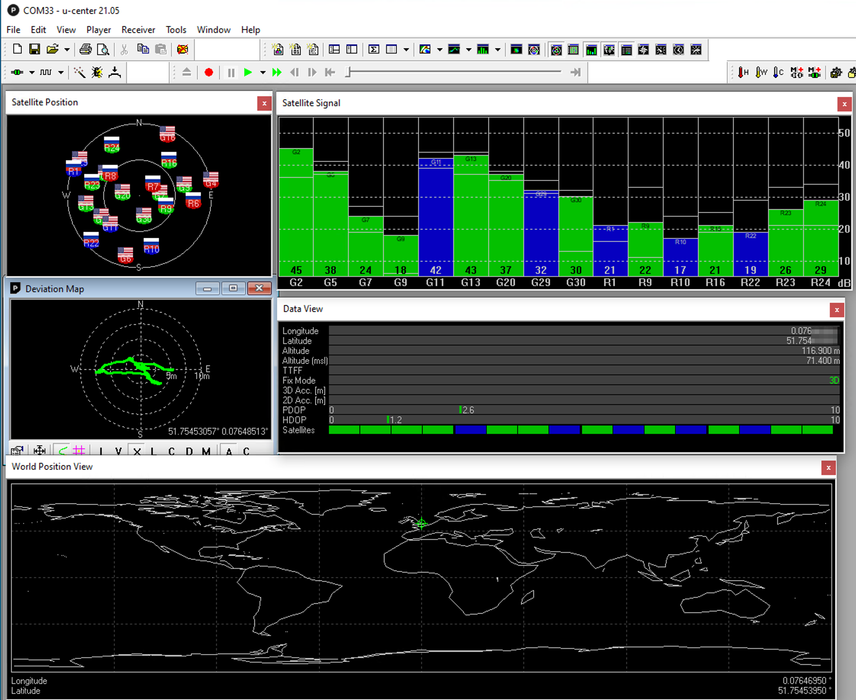

An USB-C connector is fitted on board to enable to connect directly to a PC for monitoring and configuration.

Recommended GNSS antenna.
