2x16 characters, STN blue (negative), yellow-green - 5v

2x16 characters, STN blue (negative), yellow-green - 5v

£15.00 inc VAT
£12.50 - £12.50
£12.50
£12.50 - £12.50
£12.50
ex VAT
SKU LCD162B-BIY

Introduction

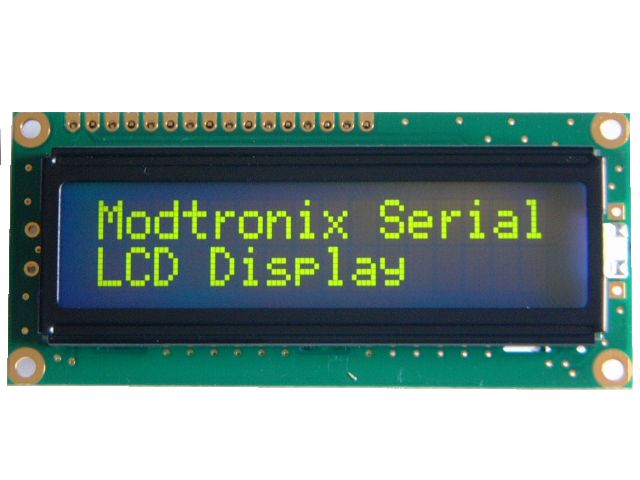

LCD Character Module Display, 2x16 characters, STN blue (negative), yellow/green LED backlight, Transflective, 6:00, Wide Temepature range, RoHS compliant, Module size 80mm x 36mm, English-European character set.

This LCD display uses STN technology, which is much better quality than the cheaper TN types. It has a better contrast and a wider viewing angle. To be visible, it has to be used with the backlight switched on

Specifications

  • Number of Characters: 16 characters x 2 Lines
  • Character Table: English-European (RS in Datasheet)
  • Module dimension: 80.0mm x 36.0mm x 13.2mm(MAX)
  • View area: 66.0 x 16.0 mm
  • Active area: 56.2 x 11.5 mm
  • Dot size: 0.56 x 0.66 mm
  • Dot pitch: 0.60 x 0.70 mm
  • Character size: 2.96 x 5.46 mm
  • Character pitch: 3.55 x 5.94 mm
  • LCD type: STN, Negative, Transmissive, Blue
  • Duty: 1/16
  • View direction: Wide viewing angle
  • Backlight Type: yellow/green LED
  • RoHS Compliant: lead free
  • Operating Temperature: -20°C to + 70°CÂ
