easy-Radio Explorer 434MHz

easy-Radio Explorer 434MHz

Sold out
£47.88 inc VAT
£39.90 - £39.90
£39.90
£39.90 - £39.90
£39.90
ex VAT
SKU EREXP-434

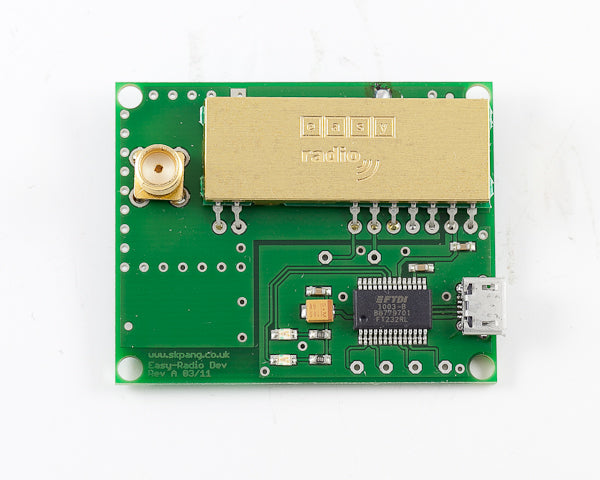

This easy-Radio Explorer provides an USB connection to the PC. It is bus powered so no external PSU are required. The antenna connector is a standard SMA.

Features

  • USB powered, no external PSU required.
  • Appears as a virtual comm port on PC
  • SMA antenna connection
  • Simple to use, embedded 'easy-Radio' firmware handles all encode/decode functions and over air transmission of data
  • 10 user selectable frequencies between 433-4MHz
  • User selectable power output up to 10mW
  • User selectable data rate between 4.8k & 76.8k bps
  • All user options via software commands, no mechanical changes
  • Range in excess of 250m line of sight
  • No software to write
  • Low current consumption Rx 21.0mA; Tx 25mA
  • Compliant with ETS-300-220-3 & R&TTE directive
  • RSSI output
  • RoHS compliant
  • Board size : 50 x 40mm
