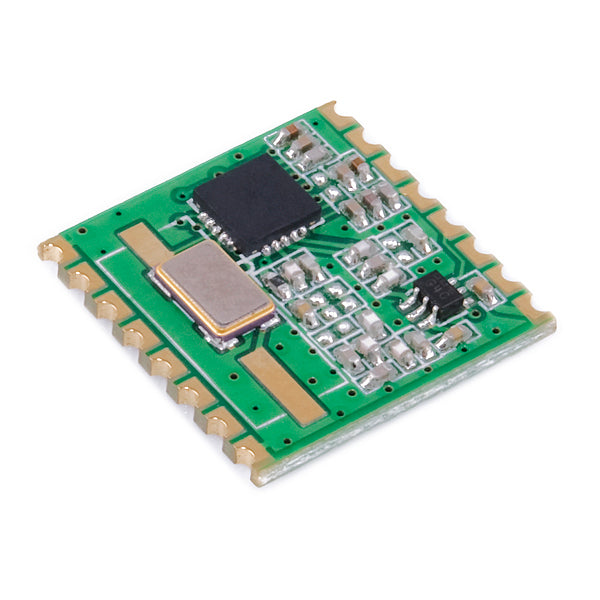

RFM22B-S2 SMD Wireless Transceiver +22dBm
The RFM22 is a low-cost ISM FSK transceiver module which offers advanced radio features, adjustable output power of up to +17 dBm. The wide operating voltage range of 1.8-3.6 V and low current consumption makes the RFM22 an ideal solution for battery powered applications.
Communication with the RFM22 is achieved via a standard 4-wire SPI interface. Three configurable general purpose I/Os are also available, the use of which can be tailored towards the needs of your project. A host of other features are also available including an 8-bit ADC, temperature sensor, RX and TX FIFOs, and low-battery detection. See the datasheet below for a complete description of every register and command.
The module comes in a 16-pin, 16 x 16mm, SMD package, with pins spaced by 2mm. Look for a breakout board coming soon!
Features
- Frequency Range = 434 MHz
- Sensitivity = -118 dBm
- +20 dBm Max Output Power (Configurable)
- Low Power Consumption
- Data Rate = 1 to 128 kbps
- Power Supply = 1.8 to 3.6 V
- Ultra low power shutdown mode
- Digital RSSI
- Wake-on-radio
- Auto-frequency calibration (AFC)
- Configurable packet structure
- Preamble detector
- TX and RX 64 byte FIFOs
- Low battery detector
- Temperature sensor and 8-bit ADC
- -40 to +85 °C temperature range
- Integrated voltage regulators
- Frequency hopping capability
- FSK, GFSK, and OOK modulation
- Low BOM
- Power-on-reset (POR)
- Dimensions: 16 x 16mm (0.63 x 0.63 in)
