easy-Radio Explorer 868MHz

easy-Radio Explorer 868MHz

Sold out
£47.88 inc VAT
£39.90 - £39.90
£39.90
£39.90 - £39.90
£39.90
ex VAT
SKU EREXP-868

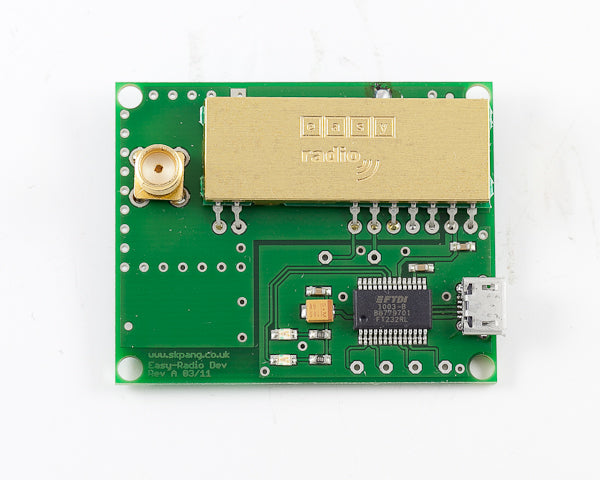

This easy-Radio Explorer provides an USB connection to the PC. It is bus powered so no external PSU are required. The antenna connector is a standard SMA.

Features

  • USB powered, no external PSU required.
  • Appears as a virtual comm port on PC
  • SMA antenna connection
  • Simple to use, embedded 'easy-Radio' firmware handles all encode/decode functions and over air transmission of data
  • Only ONE transceiver module required for EU (868-870MHz) or USA (902-920MHz) markets
  • User programmable frequency
  • User programmable power output
  • User programmable data rate
  • Frequency can be set to either 869.85MHz or frequencies in the 902-920MHz bands by simple software commands
  • Maximum output power for Europe 5mW. USA 1mW.
  • All user options via software commands, no mechanical changes
  • Range in excess of 150m line of sight
  • No software to write
  • Low current consumption Rx 21.0mA; Tx 25mA
  • Compliant with all current EU & FCC regulations
  • RSSI output
  • RoHS compliant
  • Board size 50 x 40mm
