Isolated CAN-FD Breakout Board

Isolated CAN-FD Breakout Board

£47.88 inc VAT
£39.90 - £39.90
£39.90
£39.90 - £39.90
£39.90
ex VAT
SKU ISO-CAN-FD-BRK

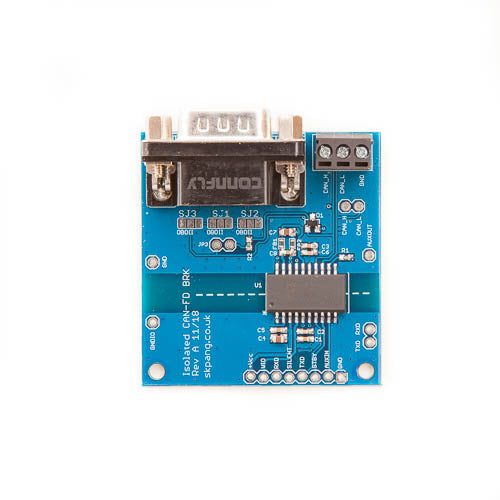

This is an isolated CAN-FD breakout board using the Analog Devices ADM3055E IC with a data rate of upto 8 Mbps.

Features
  • 5v supply requirement
  • Vio 1.7v to 5.5 logic levels
  • ISO 11898-2:2016 compliant (CAN FD)
  • Data rates up to 8 Mbps for CAN FD
  • Low maximum loop propagation delay: 150 ns
  • Extended common-mode range: ±25 V
  • Bus fault protection: ±40 V on CANH and CANL pins
  • Low power standby support remote wake request
  • 5 kV rms/3 kV rms signal and power isolated CAN transceivers
  • isoPower integrated isolated dc-to-dc converter
Documents
