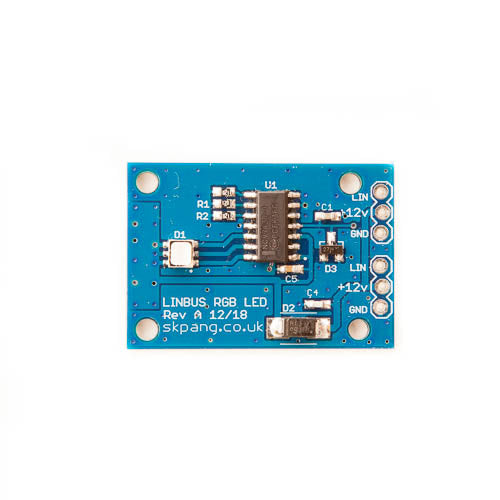

NCV7430 LIN-Bus RGB LED Breakout Board

NCV7430 LIN-Bus RGB LED Breakout Board

£22.20 inc VAT
£18.50 - £18.50
£18.50
£18.50 - £18.50
£18.50
ex VAT
SKU NCV7430-BRK






This is a RGB LED breakout board using the On Semi NCV7430 IC. Control via LIN-Bus. Ideal for use as a LIN slave to test your LIN master software.

Features
  • 3 Independent LED Current Regulators
  • LED Currents Adjustable with External Resistors
  • LIN Physical Layer according to LIN 2.1/ SAE J2602
  • Overcurrent Detection
  • Short Circuit Detection to GND and VBB
  • Open LED Detection
  • Connection via two 3way 0.1" header which can be use for daisy chaining
Documents

Distributors
Photo below using the NCV7430 LIN-Bus breakout board to test the Teensy 3.2 LIN master. (Teensy board not included)
