CAN FD Shield for STM32H503 NUCLEO-H503RB

CAN FD Shield for STM32H503 NUCLEO-H503RB

£32.28 inc VAT
£26.90 - £26.90
£26.90
£26.90 - £26.90
£26.90
ex VAT
SKU CANFD-NUCLEOH503RB-BRK

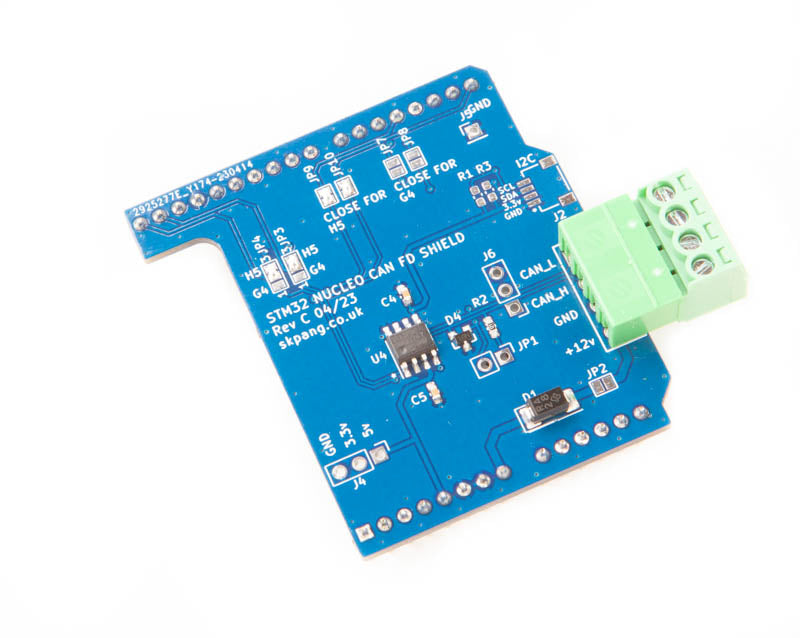

This is a CAN FD shield for the STM32H503RB Nucleo-H503RB. It use the Microchip MCP2562FD CAN FD transceiver.

Features
  • Microchip MCP2562FD CAN FD transceiver
  • Supports up to  6 Mb/s operation
  • Arduino shield layout
  • Support external 7 to 12v supply with reverse polarity protection
  • 120R terminating resistor
Documents

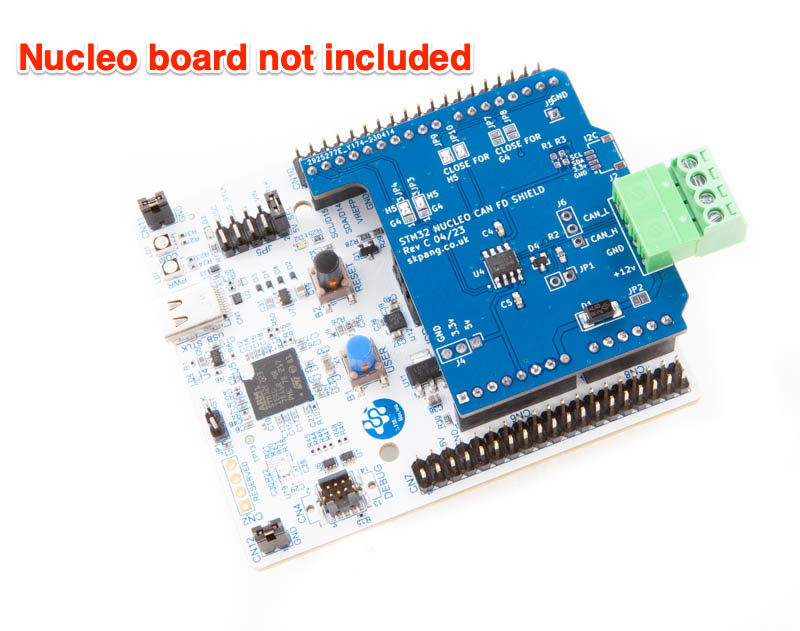

Nucleo board not included.
