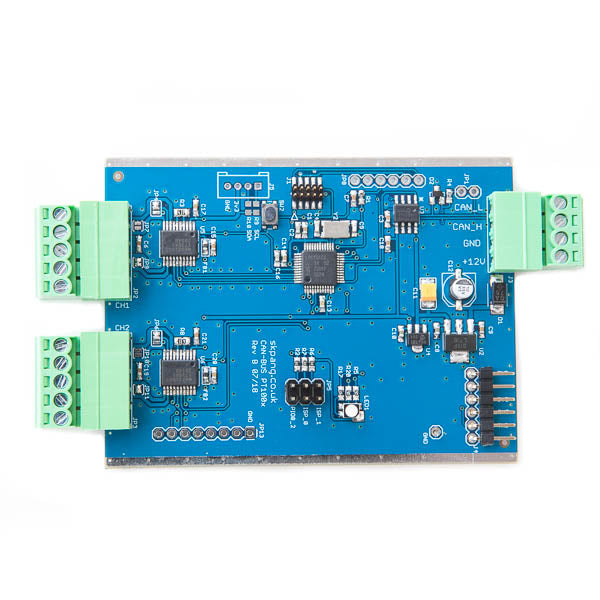

Dual PT100 RTD to CAN-Bus Converter

Dual PT100 RTD to CAN-Bus Converter

£86.40 inc VAT
£72.00 - £72.00
£72.00
£72.00 - £72.00
£72.00
ex VAT
SKU CAN-PT100-DUO





This is a two channel PT100 RTD to CAN-Bus converter. Based on the MAX31865 integrated circuit.

Features
  • Two channels
  • Compatible with 2-, 3-, and 4-Wire Sensor Connections
  • High Accuracy Facilitates Meeting Error Budgets
    • 15-Bit ADC Resolution; Nominal Temperature
    • Resolution 0.03125NC (Varies Due to RTD Nonlin-earity)
  • Total Accuracy Over All Operating Conditions:
    • 0.5NC (0.05% of Full Scale) max
  • Programmable CAN message interval
  • 6 to 20v supply voltage range
  • 3.3v UART serial output
  • Firmware upgradable via 3.3v UART, CAN or ISP


Documents

PT100 probes and FTDI board not included.
