20 Channel EM-408 SiRF III Receiver with Antenna-MMCX

20 Channel EM-408 SiRF III Receiver with Antenna-MMCX

Sold out
£51.96 inc VAT
£43.30 - £43.30
£43.30
£43.30 - £43.30
£43.30
ex VAT
SKU GPS-EM408
sku: GPS-08234

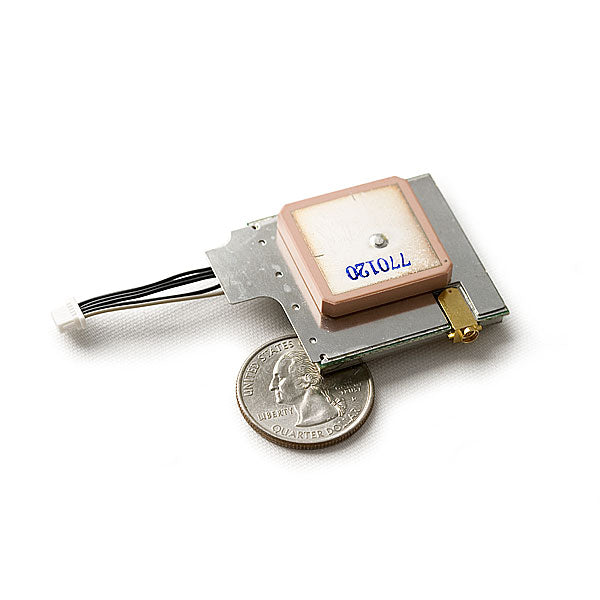

The EM-408 GPS module from USGlobalSat based on the spectacular SiRF StarIII chipset. This complete module is built upon the same technology as the ET-301, but includes a built-in patch antenna and an MMCX connector for an optional external antenna! 5-pin interface cable included.

Please note the EM408 uses a 5-pin cable and is not compatible with the 6-pin cable included with the EM406.

Features
  • 20-Channel Receiver
  • Extremely high sensitivity : -159dBm
  • 10m Positional Accuracy / 5m with WAAS
  • Hot Start : 8s
  • Warm Start : 38s
  • Cold Start : 42s
  • 75mA at 3.3V
  • 20gram weight
  • Outputs NMEA 0183 and SiRF binary protocol
Dimensions: 35mm x 36mm
