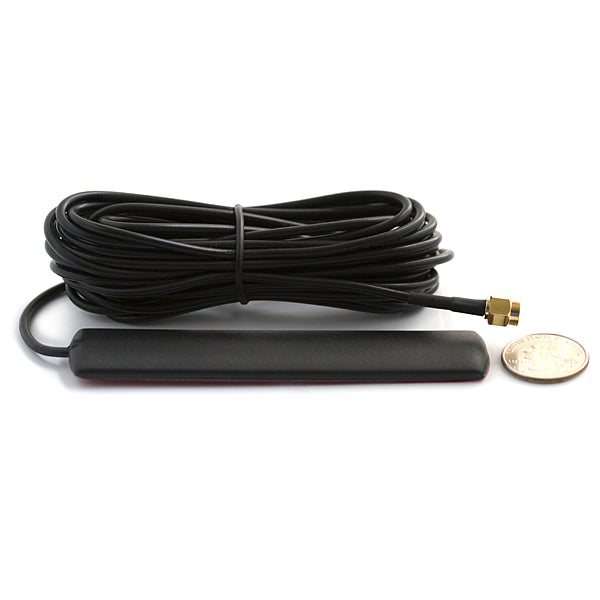

Quad-band Wired Cellular Antenna SMA

Quad-band Wired Cellular Antenna SMA

Sold out
£12.60 inc VAT
£10.50 - £10.50
£10.50
£10.50 - £10.50
£10.50
ex VAT
SKU GSMANTQ

A Quad-band antenna for embedded cellular devices. This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.


Key Specifications

  • Quad-band: 850/900/1800/1900MHz and 2.4GHz
  • For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
  • Cable with RG174A/U - 3m long
  • Connector: SMA


Electrical Properties

  • Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz
  • Impedance: 50 Ohm nominal
  • VSWR: <2.0 : 1
  • Gain: 3.5dBi
  • Radiation: Omni
  • Polarization: Vertical
  • Wave: Half Wave Dipole

Mechanical Properties

  • Size: 115x22x4mm
  • Connector SMA (Male) standard
  • Cable: RG174
  • Cable length: 3m
  • Over-mold housing: ABS Black
  • Mounting: Adhesive backing
  • Operation Temperature: -40 to +85C
