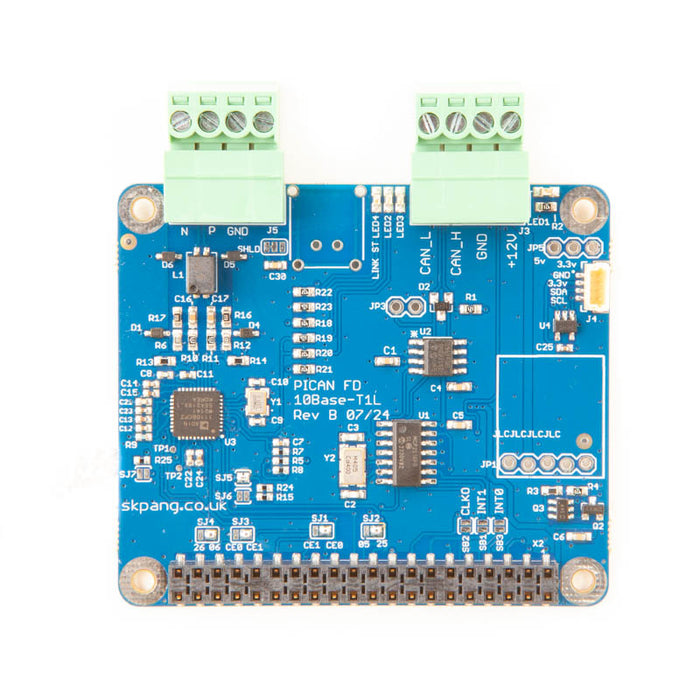

PiCAN FD Board with 10Base-T1L for Raspberry Pi

PiCAN FD Board with 10Base-T1L for Raspberry Pi

£126.00 inc VAT
£105.00 - £126.50
£105.00
£105.00 - £126.50
£105.00
ex VAT
SKU RSP-PICANFD-T1L






This board has a 10Base-T1L Single Pair Ethernet (SPE) port and a CAN FD port.
The 10Base-T1L (L for long range) is provided by the Analog Devices' ADIN1110 chip. The CAN FD is provided by the Microchip MCP2518FD CAN controller. Connection is via 4 way plugable terminal.

The improved CAN FD extends the length of the data section to up to 64 bytes per frame and a data rate of up to 8 Mbps.

CAN FD Features
  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate upto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • Conforms to ISO 11898-1:2015
  • High speed SPI Interface
  • 120Ω terminator ready
  • LED indicator
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25
  • I2C connector

10Base-T1L Features

  • Analog Devices ADIN1110 MAC/PHY controller
  • PHY designed to IEEE Std. 802.3cg - 2019
  • Cable reach up to 1700 m with 1.0 V/2.4 V
  • Integrated MAC with SPI
    • Supports OPEN Alliance 10BASE-T1x MAC-PHY serial interface
    • 16 MAC address filters
    • High and low priority queues with 28 kB buffer
    • Cut through or store forward operation
    • IEEE 1588 timestamp support
    • Statistics counters
  • Low power consumption: 42 mW (dual-supply, 1.0 V p-p)
  • Diagnostics
    • Cable fault detection with TDR
    • Link quality indicator with MSE
    • Frame generator and checker
    • Multiple loopback modes
    • IEEE test mode support
  • Supports 1.0 V p-p and 2.4 V p-p transmit levels
  • Auto negotiation
  • Unique 48-bit MAC address provided by 24AA02E48 IC
