PiCAN FD Duo Isolated for Raspberry Pi

PiCAN FD Duo Isolated for Raspberry Pi

£141.60 inc VAT
£118.00 - £119.50
£118.00
£118.00 - £119.50
£118.00
ex VAT
SKU RSP-PICANDUOFD-ISO

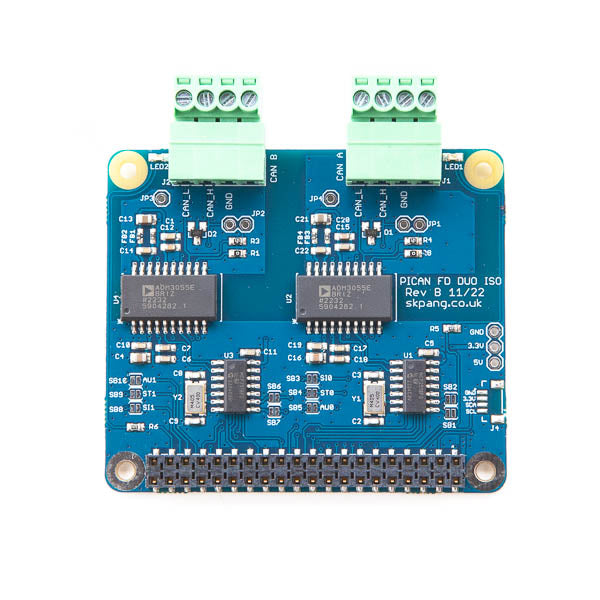

This PiCAN FD Duo Isolated board provide two channel CAN-Bus FD capability for the Raspberry Pi. It uses the Microchip MCP2518FD CAN controller with Analog Devices ADM3055 Isolated CAN transceiver. Connection are made via 4 way plug-in screw terminal. The two channel are independently isolated.

The improved CAN FD extends the length of the data section to up to 64 bytes per frame and a data rate of up to 8 Mbps.


Features
  • Microchip MCP2518FD CAN Controller
  • Analog Devices ADM3055 Isolated CAN transceiver
  • Reinforced galvanic isolation
  • Arbitration Bit Rate upto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
  • Mixed CAN 2.0B and CANFD mode
  • CAN 2.0B mode
  • Conforms to ISO 11898-1:2015
  • High speed SPI Interface
  • CAN connection via 4 way terminal
  • 120Ω terminator ready
  • LED indicator
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 and can1 to application
  • Interrupt RX on GPIO25 and 05
