PiCAN2 Duo Isolated CAN-Bus Board for Raspberry Pi - RETIRED

PiCAN2 Duo Isolated CAN-Bus Board for Raspberry Pi - RETIRED

Sold out
£0.00 inc VAT
£0.00 - £0.00
£0.00
£0.00 - £0.00
£0.00
ex VAT
SKU RSP-PICAN2DUO-ISO

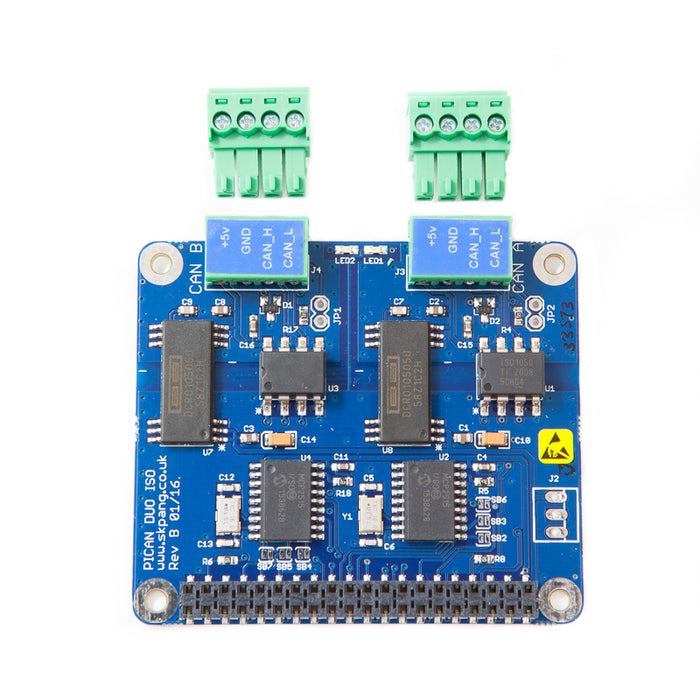

This PiCAN2 DUO ISO board provide two independent isolated CAN-Bus channels for the Raspberry Pi 2,3,4. It uses the Microchip MCP2515 CAN controller with ISO1050 isolated CAN transceiver. Connections are made via 4 way screw terminal plugs.

Easy to install SocketCAN driver. Programming can be done in C or Python.

This board is now retired. Replacement board available.


Features
  • Two galvanically isolated CAN channels
  • 70mA 5v output per channel that can be use to power other CAN nodes
  • CAN v2.0B at 1 Mb/s
  • High speed SPI Interface (10 MHz)
  • Standard and extended data and remote frames
  • CAN connection screw terminal
  • 120Ω terminator ready
  • Serial LCD ready
  • LED indicator
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 and can1 to application
  • Interrupt RX on GPIO25 and GPIO24
