5mm Blue LED

5mm Blue LED

£0.60 inc VAT
£0.50 - £0.50
£0.50
£0.50 - £0.50
£0.50
ex VAT
SKU LED5-BLU

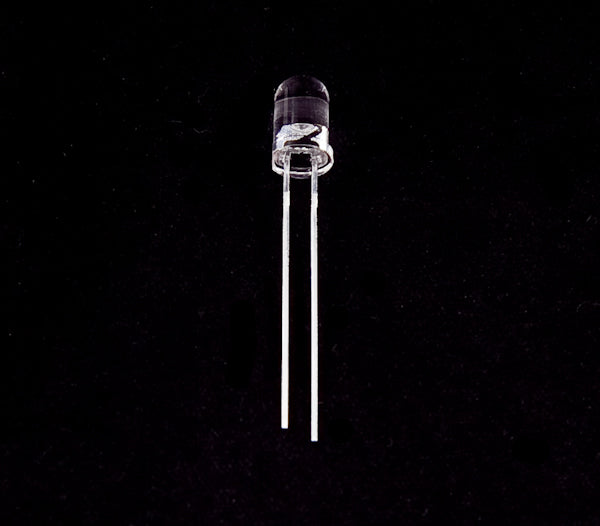

A 5mm 16° super blue LED in water clear.

Features

  • LED, 5MM, 16°, SUPER-BLUE
  • LED / Lamp Size:5mm / T-1 3/4
  • LED Colour:Super Blue
  • Typ Luminous Intensity:2500mcd
  • Viewing Angle:16°
  • Forward Current:20mA
  • Max Voltage Vf:4V
  • Operating Temperature Range:-40C to +85C
  • Case Style:Radial
  • Current Rating:20mA
  • Current, If Max:100mA
  • Lens Type:Water Clear
  • Max Storage Temperature:+100°C
  • Min Storage Temperature:-40°C
  • Min Voltage Vf:1.7V
  • Peak Wavelength:470nm
  • Power Dissipation:85mW
  • Reverse Protection Voltage:5V
  • Termination Type:Radial Leaded
  • Typ Dominant Wavelength:472nm
  • Typ Voltage Vf:3.4V
  • Opto Case Style:Radial
