5mm Green LED Pack of 10

5mm Green LED Pack of 10

£1.44 inc VAT
£1.20 - £1.20
£1.20
£1.20 - £1.20
£1.20
ex VAT
SKU 5GREEN-LED

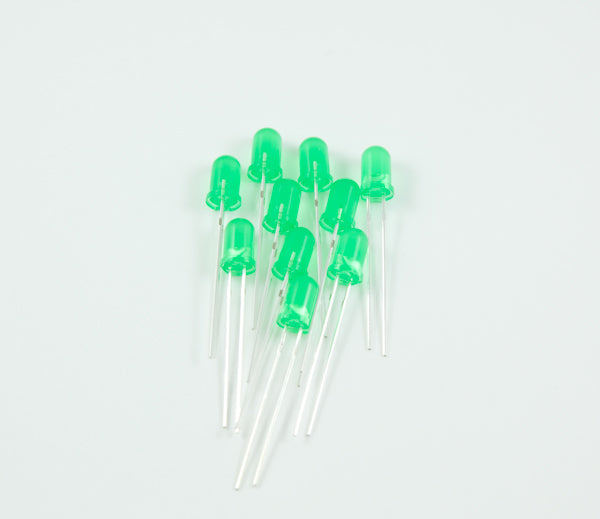

Pack of ten 5mm green LED.

Features

  • LED, 5MM, 36°, GREEN
  • LED / Lamp Size:5mm / T-1 3/4
  • LED Colour:Green
  • Typ Luminous Intensity:16mcd
  • Viewing Angle:45°
  • Forward Current:20mA
  • Max Voltage Vf:2.6V
  • Operating Temperature Range:-40°C to +85°C
  • Case Style:Radial
  • Current Rating:20mA
  • Current, If Max:100mA
  • Lens Type:Diffused
  • Max Luminous Intensity:25mcd
  • Max Storage Temperature:+100°C
  • Min Luminous Intensity:8mcd
  • Min Storage Temperature:-40°C
  • Min Voltage Vf:1.7V
  • Peak Wavelength:568nm
  • Power Dissipation:85mW
  • Reverse Protection Voltage:5V
  • Termination Type:Radial Leaded
  • Typ Dominant Wavelength:570nm
  • Typ Voltage Vf:2.1V
  • Opto Case Style:Radial
