Shaftless Vibration Motor 10x2.0mm

Shaftless Vibration Motor 10x2.0mm

£3.24 inc VAT
£2.70 - £2.70
£2.70
£2.70 - £2.70
£2.70
ex VAT
SKU VIB-MOTOR

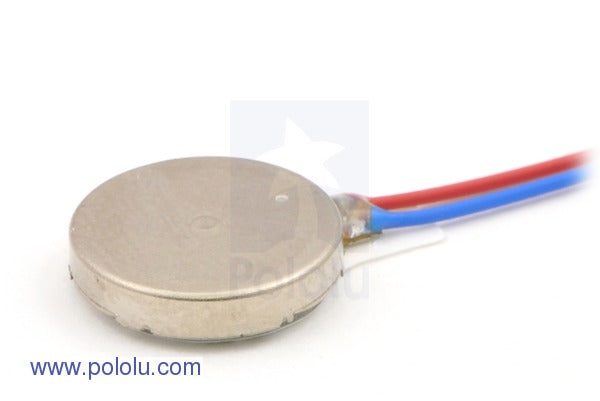

This tiny, button-type, vibrating motor shakes with a vibration amplitude of 0.75g and draws approximately 60 mA when 3 V is applied to its leads. The shaftless design keeps this motor small: 10 mm in diameter and 2.0 mm in height.

This shaftless vibration motor is fully-enclosed with no exposed moving parts. Its small size (10 mm diameter, 2.0 mm height) and shaftless design mean you can mount it on a PCB or even place it in a pocket to add quiet, haptic feedback to your project. The motor has a 3M adhesive backing on it for easy mounting and 1.5" leads for making quick connections. Polarity is not important; the motor can run CW or CCW.

Features
  • Size 10 mm diameter, 2.0 mm height
  • Weight 0.8 g
  • Recommended operating voltage 2.5 – 3.5 V
  • Vibration amplitude at 3 V 0.75g
  • Speed at 3 V 14500 RPM (12000 RPM min)
  • Free-run current at 3 V 60 mA (80 mA max)
  • Startup current at 3 V 120 mA max
  • Motor resistance 29 ± 6 Ω
  • Operating temperature -10°C to +60°C
  • Storage temperature -30°C to +70°C
