Stepper Motor: Bipolar, 200 Steps-Rev, 28x32mm, 3.8V, 670mA

Stepper Motor: Bipolar, 200 Steps-Rev, 28x32mm, 3.8V, 670mA

£25.20 inc VAT
£21.00 - £21.00
£21.00
£21.00 - £21.00
£21.00
ex VAT
SKU STEPPER28X32

Pololu item #: 1205

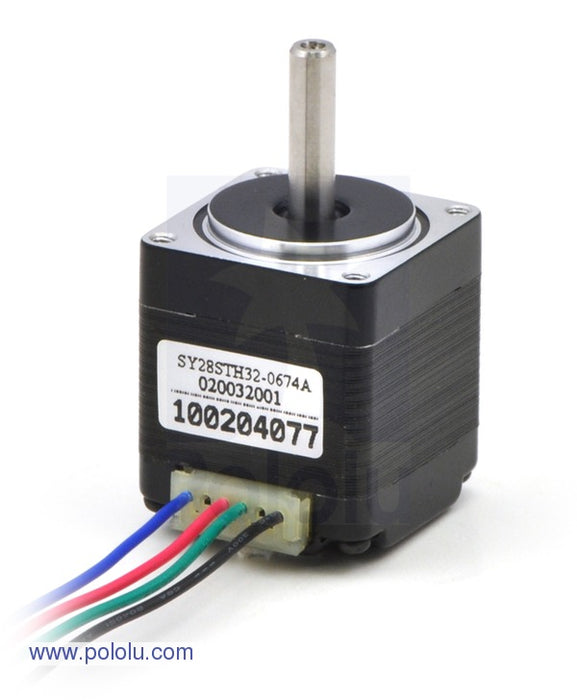

This hybrid bipolar stepping motor has a 1.8° step angle (200 steps/revolution). Each phase draws 670 mA at 3.5 V, allowing for a holding torque of 600 g-cm (8.3 oz-in). The motor has four color-coded wires terminated with bare leads. Our 5mm universal mounting hub can be used to mount objects on the stepper motor's 5mm-diameter output shaft.

Specifications

  • Size: 28 mm square x 32 mm (not including the shaft)
  • Weight: 110 g (4 oz)
  • Shaft diameter: 5 mm
  • Steps per revolution: 200
  • Current rating: 670 mA per coil
  • Voltage rating: 3.8 V
  • Resistance: 5.6 Ohm per coil
  • Holding torque: 600 g-cm (8.3 oz-in)
  • Inductance: 4.2 mH per coil
  • Lead length: 12 in
