Monster Moto Shield

Monster Moto Shield

Sold out
£64.08 inc VAT
£53.40 - £53.40
£53.40
£53.40 - £53.40
£53.40
ex VAT
SKU AR-MONMOTO
sku: DEV-10182

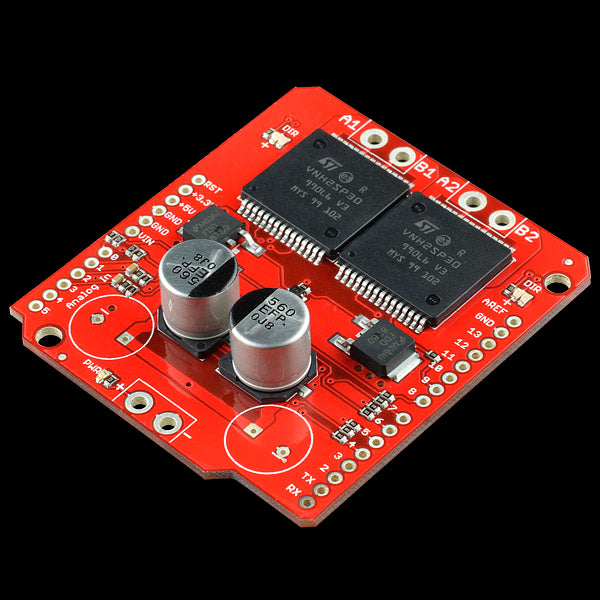

This is essentially a ramped up version of our Ardumoto motor driver shield. For this monster shield we've replaced the L298 H-bridge with a pair of VNH2SP30 full-bridge motor drivers. We've also beefed up the support circuitry so this board is capable of driving a pair of high-current motors! The VIN and motor out are pitched for our 5mm screw terminals (not included), making it easy to connect larger gauge wires.

Note: When using this board in extreme high-demand applications it may be necessary to improve thermal performance with a heat-sink or fan and to solder the wires directly to the board instead of using a screw terminal (in addition to the myriad other complications present in a 30A system) However, when using the board at currents up to 6A the chips will barely become noticeably warm.

Features
  • Voltage max: 41V
  • Maximum current rating: 30 A
  • Current sensing available to Arduino analog pin
  • MOSFET on-resistance: 19 mΩ (per leg)
  • Maximum PWM frequency: 20 kHz
  • Thermal Shutdown
  • Undervoltage and Overvoltage shutdown
