RFID Evaluation Shield - 13.56MHz

sku: DEV-10406

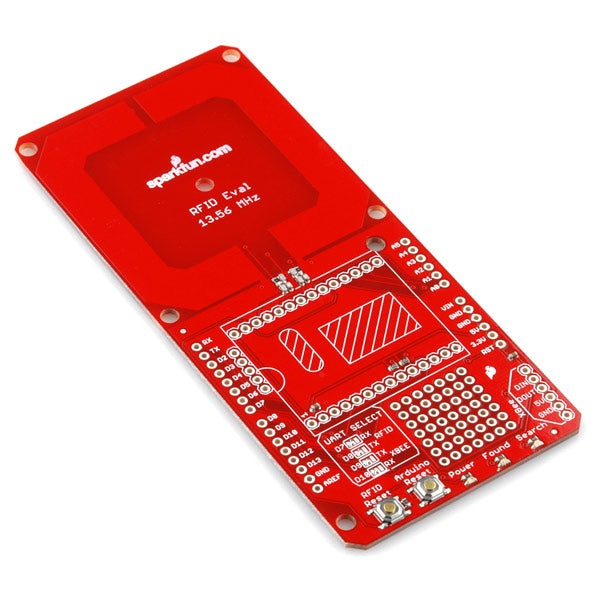

This board is an evaluation platform for the SM130 RFID module. It includes an XBee header, PCB trace antenna, and has the layout to be used as a shield for an Arduino. There is a small prototyping area as well. This board can also be used as an antenna to the SM130 RFID module. Be sure to check the schematic for information on the connections.

This board comes populated with the switches, resistors and LEDs, but does not include the RFID module, XBee or Arduino board.

We've corrected the silkscreen error that was present in the last version of the board. The UART selection jumpers are now correctly labeled.

Note: The images for this product show the old version of this board. The silkscreen in the image is incorrect but the boards we are now selling have the corrected silk. We will update the image as soon as possible. Refer to the schematic for correct pin assignments. Here is how it should read:

D7 -> RFID RX

D8 -> RFID TX

D9 -> XBee TX

D10 -> XBee RX
