Big Dome Push Button - Red

£13.08 inc VAT
Original price £10.90 - Original price £10.90
Original price
£10.90
£10.90 - £10.90
Current price £10.90
ex VAT
SKU SW-BIGDOME

sku: COM-09181

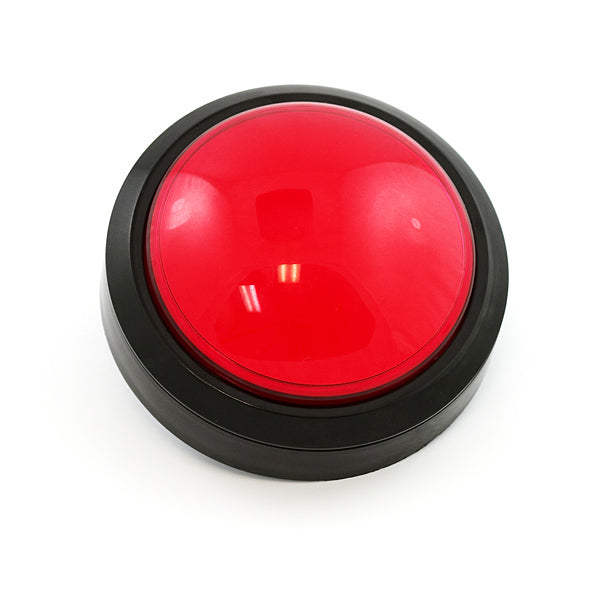

It's the end of the world, and you need a button to press. This is it. A 100mm diameter (outside diameter) dome illuminated push button comes with a LED, securing nut and a pre-installed long life horizontal microswitch. Button can also be adjusted to a low profile button by removing the middle ring.

Note: Some basic assembly required.

Features

  • LED indicator light runs at 12VDC
  • Bulb holder is easy to install or remove
  • 3 Terminals Button Actuator microswitch included
  • Microswitch reliability tested to 10,000,000 cycles
  • Microswitch can be replaced
  • Polycarbonate lens cap for optical clarity

Dimensions

  • 100 mm Diameter x 72 mm Height
  • Net weight: 100grams
  • Mounting hole diameter: 24 mm
