Teensy 4.1 Dual CAN Board with 480x320 3.5" Touch LCD

Teensy 4.1 Dual CAN Board with 480x320 3.5" Touch LCD

£118.80 inc VAT
£99.00 - £99.00
£99.00
£99.00 - £99.00
£99.00
ex VAT
SKU T41_LCD32

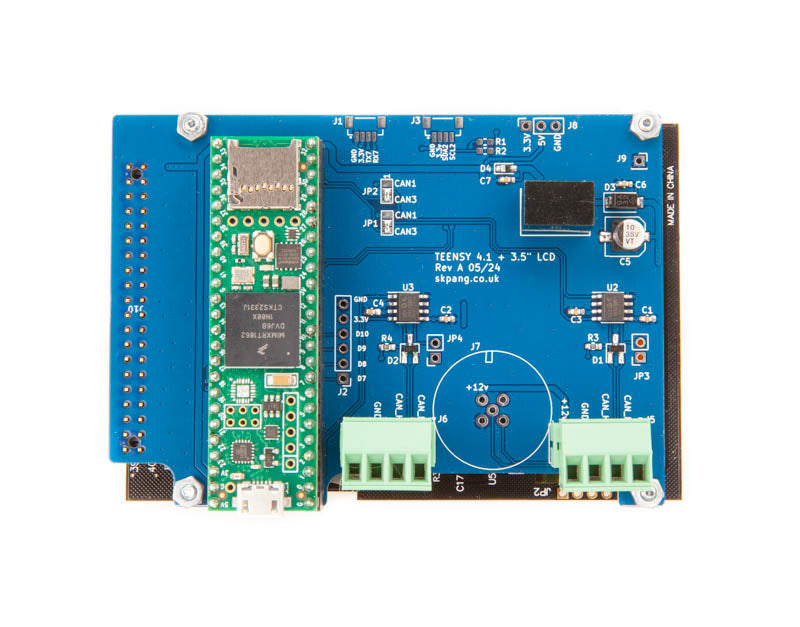

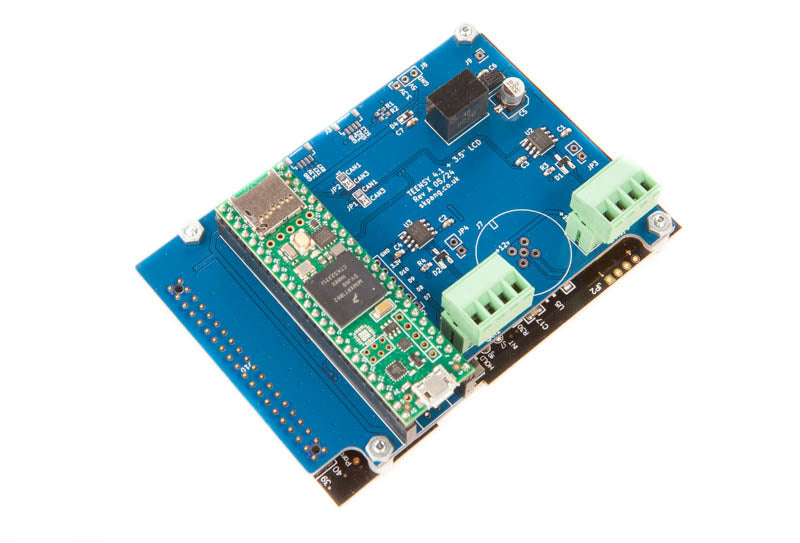

This is a Teensy 4.1 (installed) with dual CAN port. This board includes a 480x320 3.5" capacitive touch screen with ILI9488  LCD controller. Connection to Teensy is via SPI. The board can be power by USB via the Teensy or via external 7 to 24v with on board SMPS supply.

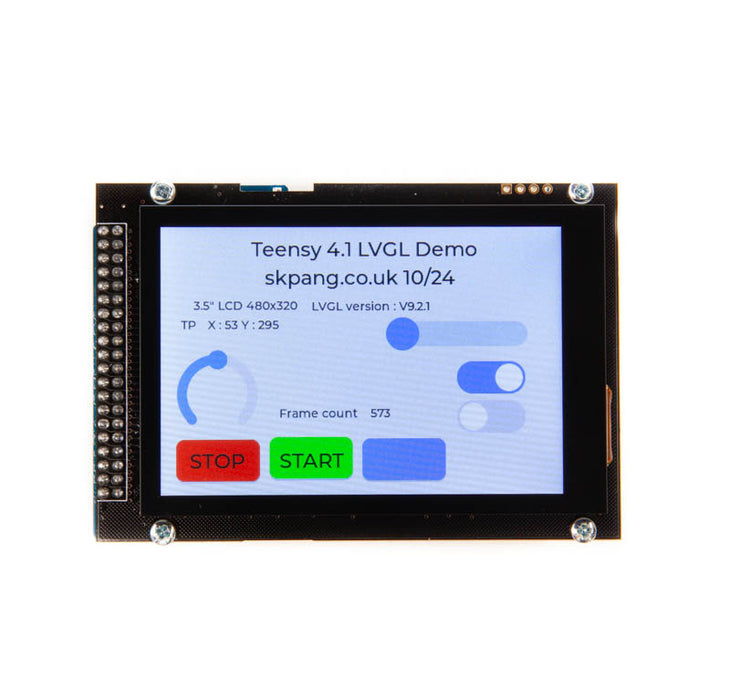

Graphic library by LVGL. UI editor by SquareLine Studio.

Features
  • Teensy 4.1 (installed)
  • 480x320 3.5" capacitive touch screen
  • Port 1 : can1 (Classic CAN) or can3 (CAN FD)
  • Port 2 : can2 (Classic CAN)
  • Power by USB or external 7 to 24v with on board SMPS supply
