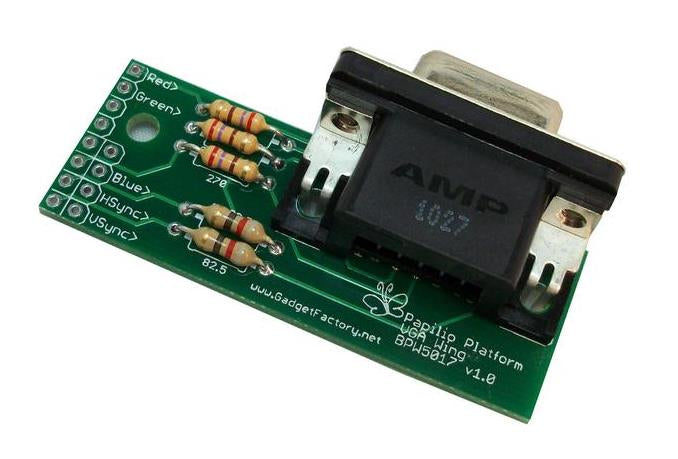

Papilio VGA Wing Kit

Papilio VGA Wing Kit

Sold out
£13.08 inc VAT
£10.90 - £10.90
£10.90
£10.90 - £10.90
£10.90
ex VAT
SKU PAP-VGA

This VGA Wing allows graphics to be added to your projects, up to eight colors with as much resolution as you can preserve memory for.

Specifications

  • One R,G,B control line allows for a combination of 8 colors.
  • Voltage Divider design allows for fast response times and high resolutions.
  • Resolution depends on how much memory can be made available for your project.

Applications

  • Menus
  • Video Games
  • Slideshows
  • Graphical Interfaces

Resources

Example Projects

Kit includes (Assembly required)

  • VGA Wing PCB
  • DB15 VGA Connector
  • 2 x 82.5 ohm Resistors
  • 3 x 270 ohm Resistors
  • 12 pin Male Breakable Header
