EM-406 Connector Breakout

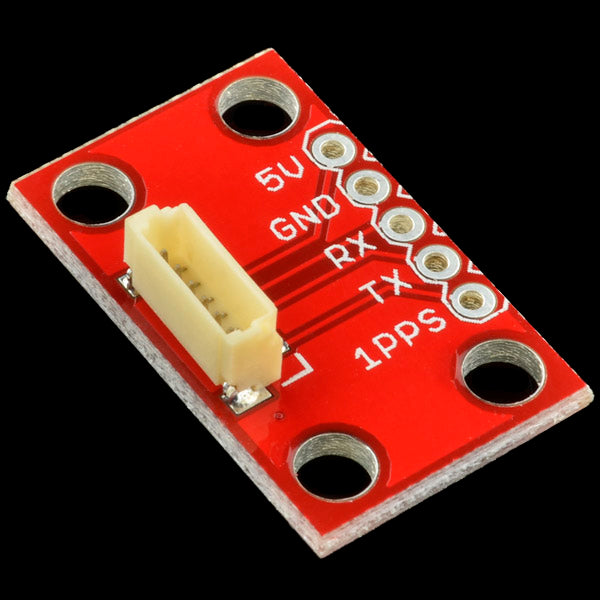

This is a simple breakout board that uses a vertical SMD connector for the EM401 or EM406 GPS module cables. It features 4 mounting holes and through-hole connections for wires or headers.

Documents:

• Schematic
• Eagle Files
• Datasheet (EM406)
