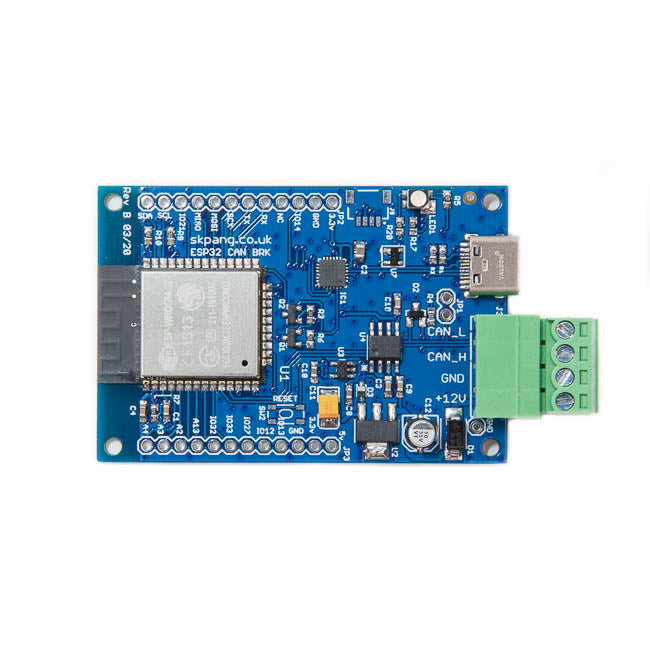

ESP32 CAN-Bus board

This board has an ESP32 WROOM-32 WiFi, Bluetooth Classic and BLE Module and a CAN transceiver. On board is a RGB LED, IO pins on a 0.1" pads. Programming is done with the USB-to-Serial converter with USB-C connector, automatic bootloader and reset.

• 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
• Integrated 520 KB SRAM
• Integrated 802.11b/g/n HT40 Wi-Fi transceiver, baseband, stack and LWIP
• Integrated dual mode Bluetooth (classic and BLE)
• 4 MByte flash include in the WROOM32 module
• On-board PCB antenna
• Programming via USB-C connector
• CAN transceiver
• External supply with reverse polarity protection

Documents

• Schematic
• Demo code
