PiCAN2 CAN-Bus Board for Raspberry Pi 2-3 with SMPS

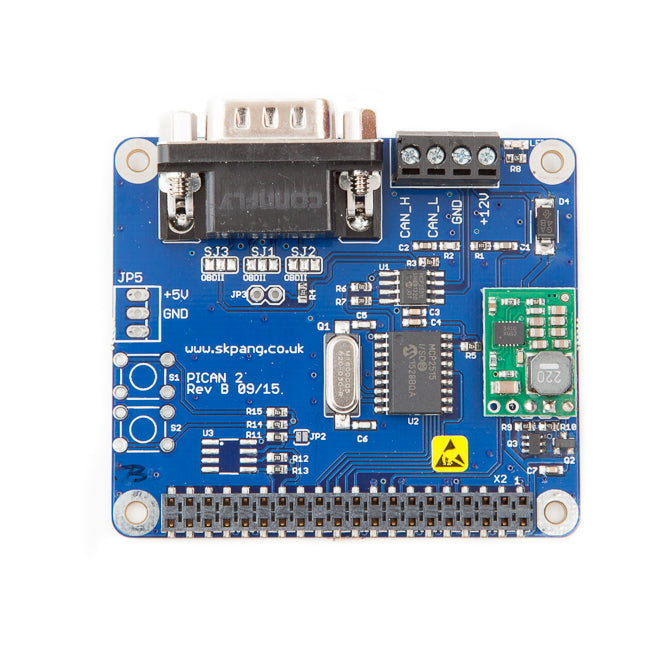

This PiCAN2 board provide CAN-Bus capability for the Raspberry Pi. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connection are made via DB9 or 3 way screw terminal. This board includes a switch mode power suppler that powers the Pi is well.

Easy to install SocketCAN driver. Programming can be done in C or Python.

• CAN v2.0B at 1 Mb/s
• High speed SPI Interface (10 MHz)
• Standard and extended data and remote frames
• CAN connection via standard 9-way sub-D connector or screw terminal
• Compatible with OBDII cable
• Solder bridge to set different configuration for DB9 connector
• 120Ω terminator ready
• Serial LCD ready
• LED indicator
• Foot print for two mini push buttons
• Four fixing holes, comply with Pi Hat standard
• SocketCAN driver, appears as can0 to application
• Interrupt RX on GPIO25
• 5v 1A SMPS to power Raspberry Pi and accessories from DB9 or screw terminal
• Reverse polarity protection
• High efficiency switch mode design
• 6v to 20v input range
• Optional fixing screws - select at bottom of this webpage

• User guide

• Schematic Rev B
• Writing your own program in Python

• Python3 examples in Github
