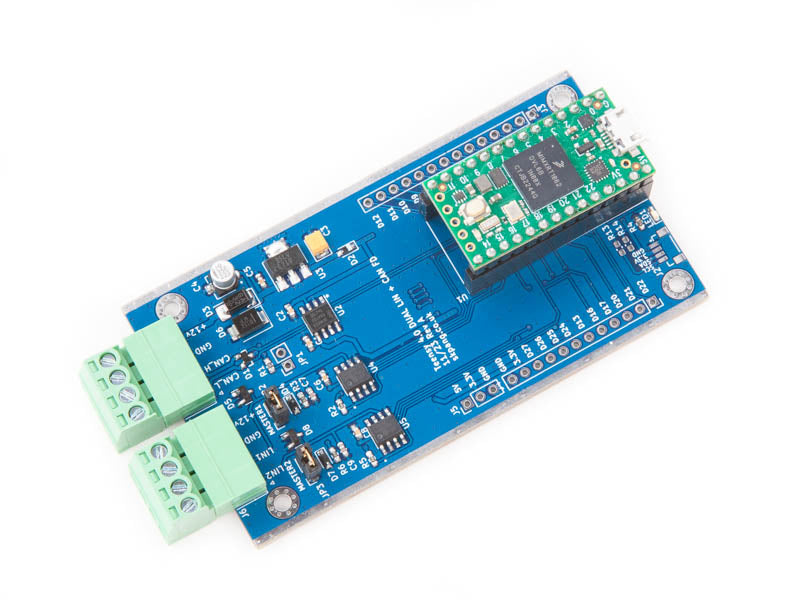

Teensy 4.0 Dual LIN and CAN FD board Include Teensy 4.0

Teensy 4.0 Dual LIN and CAN FD board Include Teensy 4.0

£89.88 inc VAT
£74.90 - £74.90
£74.90
£74.90 - £74.90
£74.90
ex VAT
SKU T4-CAN2LIN





This is a CAN FD and 2 channel LIN-bus board with a Teensy 4.0 (included). It has on board 5v regulator and reverse voltage protection. CAN FD and LIN-bus transceivers. The LIN-Bus is provided by the Microchip MCP2004A.


Features
  • Teensy 4.0 (installed)
  • On board voltage regulator (Input voltage  range 7v to 12v)
  • Reverse supply voltage protection
  • Classic CAN or CAN FD
  • 120R terminator
  • 2x LIN driver by Microchip MCP2004A.
  • Up to 20k baud on LIN
  • With ESD protection
